DRILLING EQUIPMENT

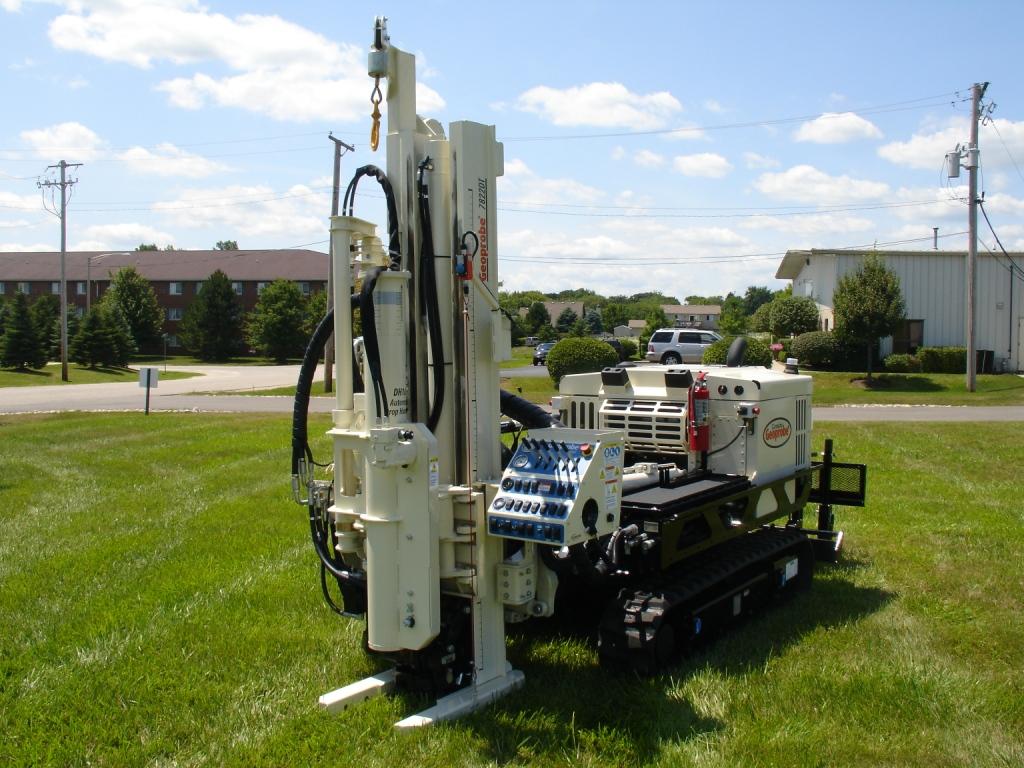

GEOPROBE 8040DT DRILLS
These Compact yet mighty tracked units are capable of high capacity direct push as a result of their exemplary hammer capabilities. These units also offer the ability to switch between drilling methods quickly and efficiently.
Specifications
- 2 Meter Stroke
- 59,000 lbs Down Force
- 160,000 lbs Retraction Force
- 10, 000 lbs Drill Head Torque
- 32Hz Percussion Hammer Force
- 2 Speed Auger System
- Low Ground Pressure (6.8 psi)
- Hydraulic Breakout System
Capabilities
- Direct Push Drilling
- Solid Stem / Hollow Stem Auger
- ODEX/Symmetrix
- Coring HQ, NQ
- Air/Mud Rotary
- SPT & Split Spoon
- Shelby Tubes
3 TON TRUCK MOUNTED DRILL
- 3M stroke
- 18,000 lbs drill head torque
- 35,000 lbs retraction
- SPT Capable
- Winch
- Shelby Tubes
TRACK MOUNTED DRILLING UNITS
Our track mounted drilling units provide a reliable and effective way to perform geotechnical and environmental drilling services in the most difficult to access locations. Power, traction, stability and flotation provide the ideal vehicle for muskeg, mountain and winter environments.
Specifications
- 3 Meter S troke
- 18,500 lbs Drill Head Torque
(2 Speed) - 50,000 lbs Retraction Force
- Low Ground Pressure
(4.05 psi) - Hydraulic 3 Way Snow Blade
- 15 km/h Ground Speed
- Winch
Capabilities
- Solid / Hollow Stem Auger
- SPT & Split Spoon
- ODEX/Symmetrix
- Air / Mud Rotary
- Coring HQ, NQ
- Shelby Tubes

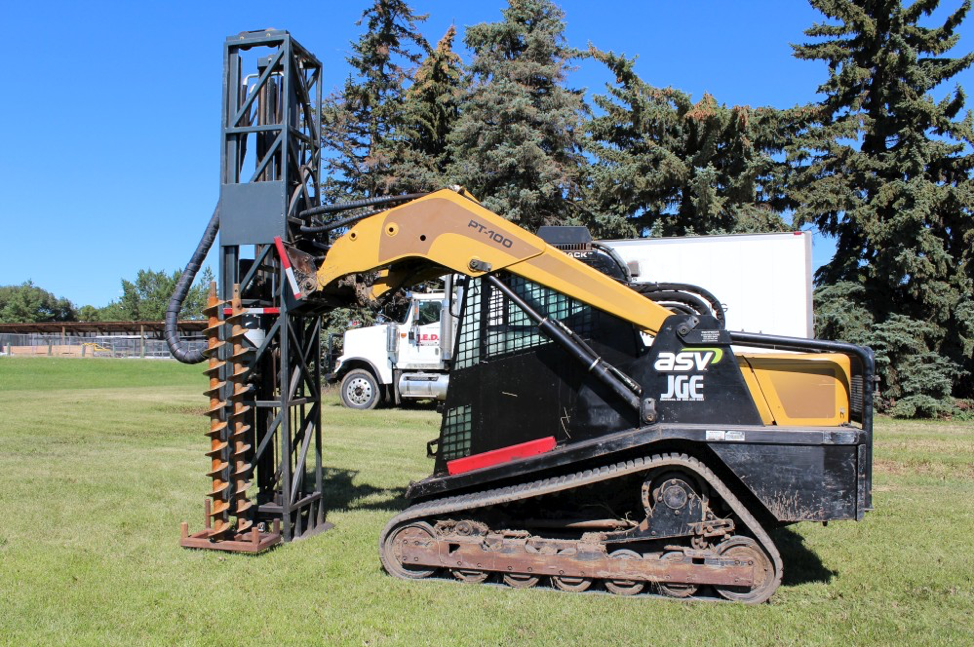

SKID STEER AUGER DRILL
Specifications
- 6000lb Torque
- 15,000lbs Retraction
- Low Ground Pressure (3.8 psi)
- Blade Available for Snow Clearing
Capabilities
- Solid Stem Auger
- 4” & 6” Auger
FRASTE MULTIDRILL XL 140
This unit is powerful, flexible and compact. Thanks to its simple modular-based construction and its high technological content this drill can be easily customized and adapted to any drilling system.
Specifications
- 3.5 Meter Stroke
- 15,300 lbs Down Force
- 18,000 lbs Retraction Force
- 11,000 lbs Torque
Capabilities
- Solid / Hollow Stem Auger
- ODEX/Symmetrix
- Coring HQ, NQ
- Air/Mud Rotary
- SPT & Split Spoon
- Shelby Tubes
